fr-f840变频器综合介绍
三菱fr-f840系列变频器是一款多功能轻载型变频器，特别适合风机水泵类负载
三相380v输入，功率范围：0.75~560kw
它的前身是fr-f540和fr-f740系列。是传承创新、节能增效、绿色环保的新一代变频器。呈现更显著的节能效果。
f840变频器产品列表
| fr-f840-00023-2-60 | 3相380v,额定2.1a,代替fr-f740-0.75k-cht | ||
| fr-f840-00038-2-60 | 3相380v,额定3.5a,代替fr-f740-1.5k-cht | ||
| fr-f840-00052-2-60 | 3相380v,额定4.8a,代替fr-f740-2.2k-cht | ||
| fr-f840-00083-2-60 | 3相380v,额定7.6a,代替fr-f740-3.7k-cht | ||
| fr-f840-00126-2-60 | 3相380v,额定11.5a,代替fr-f740-5.5k-cht | ||
| fr-f840-00170-2-60 | 3相380v,额定16a,代替fr-f740-7.5k-cht | ||
| fr-f840-00250-2-60 | 3相380v,额定23a,代替fr-f740-11k-cht | ||
| fr-f840-00310-2-60 | 3相380v,额定29a,代替fr-f740-15k-cht | ||
| fr-f840-00380-2-60 | 3相380v,额定35a,代替fr-f740-18.5k-cht | ||
| fr-f840-00470-2-60 | 3相380v,额定43a,代替fr-f740-22k-cht | ||
| fr-f840-00620-2-60 | 3相380v,额定57a,代替fr-f740-30k-cht | ||
| fr-f840-00770-2-60 | 3相380v,额定70a,代替fr-f740-37k-cht | ||
| fr-f840-00930-2-60 | 3相380v,额定85a,代替fr-f740-45k-cht | ||
| fr-f840-01160-2-60 | 3相380v,额定106a,代替fr-f740-55k-cht |
三菱变频器相关资料下载

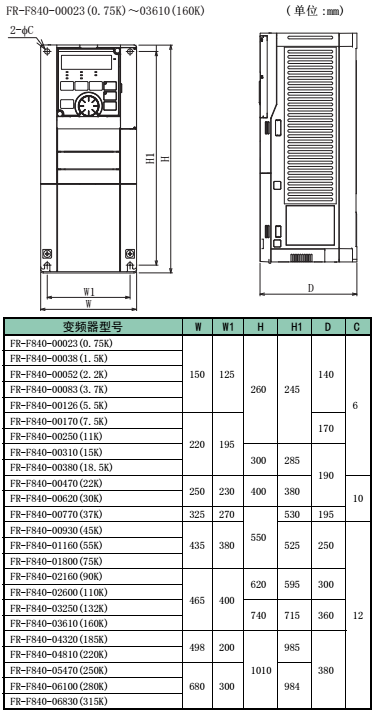

相关尺寸
